Assembling Big Clock Hands on a Small Motor

December 2, 2016

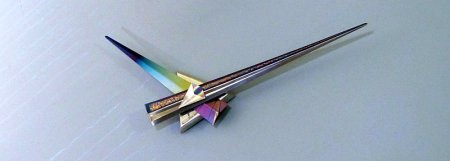

20101105clockWhen I sell one of my titanium handed clocks, I’ve learned the hard way to ship it disassembled. The hands weigh several ounces, and when a shipping box is dropped from 48″ (seems to be the standard handling practice I see when watching them load luggage onto a plane) the heavy hand tears the stem right out of the motor. I’ve tried many very careful methods of shipping it assembled, fool proof. The service sector has been creative in supplying me with improved fools.

So some assembly is required.

First step, unpack everything onto a reasonably clear surface. Preferably a smooth, flat area large enough to rotate the shipping box around.

clipboard

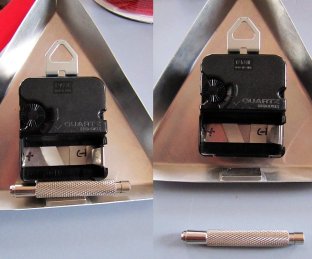

Take the base, and make sure all the needed parts are removed from its protective cavity. If you opted to get the nut wrench (highly recommended) it will be stored in here with a retaining magnet. Probably the tiny minute hand nut in a bag, as well.

Set the base face up on the table, with the top (12:00 position) away from you. Note the flat sides of the minute hand axle, and make sure they are pointing up to 12:00 for ease of alignment.

img_1634

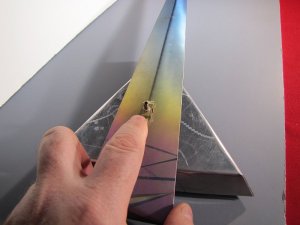

On the first hand, the Hour hand, align it with the 12:00 position, slide it over the axle, and simply press it down.

Put pressure on the elevated mounting bracket rather than the hand itself.

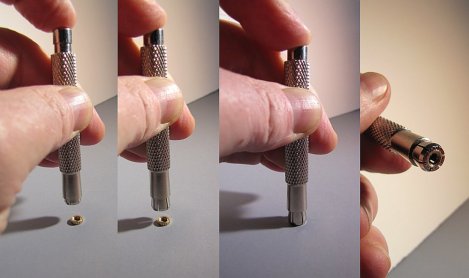

Pick up the minute hand nut by placing it on the surface, pressing the top of the wrench to open the bottom, place vertically over the nut, and letting go of the button.

img_1631a

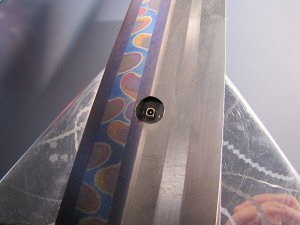

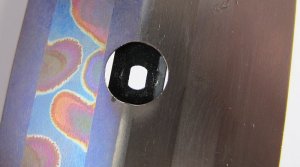

Note the direction of the hole and of the axle. slide the hole over the axle until it drops into place. There should be no pushing; it just drops down when aligned.

img_1619img_1637

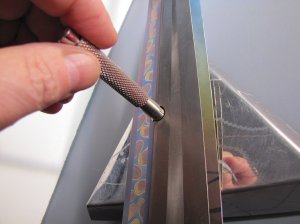

Take the nut wrench, vertically, place the nut over the axle, and gently turn until you feel it catch, thread, and then stop. If it doesn’t start, back it off and try to make the wrench more vertical. Gently does it. If you use force, you are probably stripping the threads.

How tight? Enough to turn the minute hand, and then a bit more (block the hand from turning with a finger; don’t grip the hand.

img_1638

Once the nut is in place, squeeze the release button on the back of the wrench (pressure between palm or thumb and fingers, don’t press down on the clock) and lift it away.

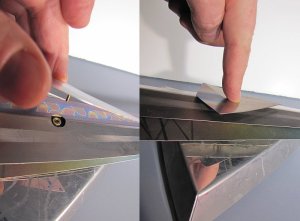

img_1642aAnd on to the third hand, the second hand. Gently place its stem over the axle, feeling for when it is in place. Once it seems to be centered, then gently press it down. There is less clearance for the second hand because it is not likely to collide wa-ay out there like the heavier hands on these not-so-rigid axles.

img_1643

And the final steps are to put in the battery and hang it on your hook or nail. Handle the clock by the base, and note where the hanger is to help you place it.

img_1644

Once it is on the wall, set the time by pushing the minute hand around from outside the radius of the hour hand with a finger or pen or some such. Take care not to lift or depress the hand, nor to bump the hour hand.

Instructions on how to tell time precisely to 5 minutes are on the  MrTitanium.com Clock Page. With practice, you can accurately interpolate to the minute.

Advertisements

Trouble with Dimmer-Based Circuit outside of the U.S.

February 19, 2014

Tod from the U.K. said:

I have noticed that my dimmer anodizer won’t go below about 35v, even if I go above then come down. Would a different wattage bulb help do you think? Or is it down to the dimmer?

My discussion and solution:

I used to have trouble getting the dimmer to work below about 15 volts, coming from 110vac. So trouble below 35v at 220 vac seems about right. And most of the world has 220 instead of 110 vac.

One solution may be to modify the original circuit (discussed here) with a voltage divider: Put the two light bulbs across the capacitor with a tap for the output voltage in between to get at lower voltages more easily.
Voltage divider

The output voltage will then be Cap Voltage x R2/(R1 + R2).
But bulb wattage is counter intuitive here:

  • Power (watts) is proportional to the inverse of the resistance.
  • Also, the actual bulb resistance depends on the brightness of the bulbs. But we can pretty much ignore this because we are measuring only the output voltage.

So using P for the wattage (rated bulb power) the good-enough formula is

V= Vcap x P1/(P1 + P2)

Simply, if R1=R2, then P1 = P2 and it comes out half.

But to get even lower voltages, try 100 watt R1 and 200w R2 to get V = Vcap x 100/(100 + 200) = 1/3 x Vcap
Play with the ratios until you get the range and stability you want.

And note that the output resistor is still there between the cap and the electrodes; we just moved it to the other side of the original dimmer load bulb to put it in series.
Thus the smaller the R1 wattage is, the slower the anodizer will work.

And remember that this only works for filament or halogen bulbs, not CF nor LED bulbs.


Q: What common materials can be used to etch titanium?

August 9, 2011

To niggle the semantics, it depends on what is common in ones world.

Any chemistry lab would have hydrofluoric acid, the fastest way to etch titanium. Its helper molecule sulfuric acid is available everywhere (battery acid or some drain cleaners). The combination of the two makes for a smoother etch, but you’ll have to ask a chemist, why?

I’ve found a blend of oxalic acid (HCO) and sodium bi-fluoride in a grocery store laundry section bottled as a rust remover. This etches the titanium, but can leave a carbon residue, that is easy to remove.

Supposedly, concentrated oxalic acid by itself could do the job. But I don’t see how from an entropy standpoint. Also, there is the risk of carbon monoxide fumes (oxalic acid is carbon-monoxide-acid).

ABF (ammonium-bi-fluoride) is common due to its high-volume use in the nuclear industry. I’ve used this by itself at high temperatures. It behaves like weak hydrofluoric acid; essentially buffered.

The key ingredient for etching titanium is loosely bonded fluoride ions. This means that anything that will eat titanium can kill you if it gets into your system. Some people are sensitive enough that a splash of HF on the skin can kill.

Some other suggestions and cautions are here: http://www.finishing.com/134/32.shtml

But my usual recommendation is to order Multi-Etch, a balanced blend of sodium-bi-fluoride and ammonium-sulfate, shipped dry and ready to mix:  Visit http://multietch.com
